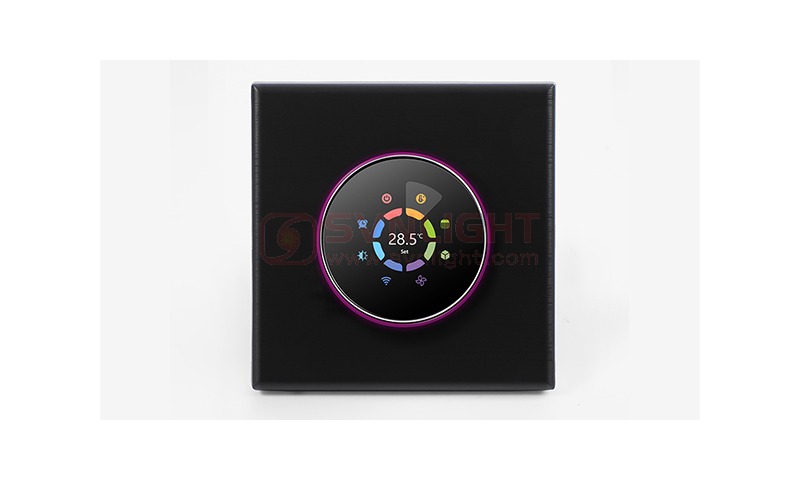

1.32 inch circular and 240*240 TFT shows your artistic taste.
Superfine aluminum side knob lets your fingers feel delicate.
Above 6H tempered glass keeps your screen away from scratches.
Agile push button gives you an excellent experience.
Seven colors ambient light increase color to your life.
Variety brushed back panel options are suitable for different home styles.
Power Supply:95 ~240 VAC, 50~60Hz or 24V DC/AC, 50~60Hz
Please check the information laser printed on the back of the
thermostat for the actual voltage.
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Set Temp. Range: 5 -35 ℃
Accuracy: ±1 ℃
Dispaly Temp. Range: 5 ~ 99℃
Ambient Temp.:0~45 ℃
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.:-5~ 45 ℃ Timing Error: < 1%
Power Consumption: <1.5W
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 X 1.5 mm² or 1 x2.5 mm²
Protection Class: IP20
A: Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve
M: Two pipe; Control Fan Coil Unit and 0-10V Motorized Valve
E: Four pipe; Control Fan Coil Unit and Two Wired Heat Valve
and Two Wired Cool Valve.
N: Modbus RTU communication
W : Wifi connection
The ACE20 range has been developed to control electric underfloor, water heating or water/ gas boiler systems. These units
are designed for use in commercial, industrial, civil and domestic properties
