Single/Twin Conductor Heating Cable

Model: SLLP

INQUIRY（）

SEND EMAIL

ADD TO INQUIRY CART

DESCRIPTION
PARAMETERS

• Cable Diameter: 6.5mm to 7.0mm,high mechanical strength.

• Widely used for thick concrete heating, soil heating and road snow melting, etc.

• Concealed joints, both hot and cold joints have the "SPLICE" logo.

• Aluminum foil has a 100% shielding function with nearly zero EMF.

• Can be used in humid places.

• Long service life requiring no maintenance.

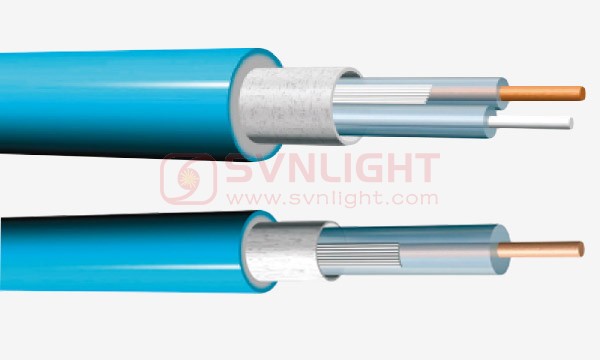

Cable Construction:

A Heating Element:Alloy Resistance

B Insulation Layer:XLPE，Provides high-performance conductors insulation

C Ground earth:Tinned Copper

D Sheild screen: Aluminum foil,shielding electromagnetic radiation

E Jacket layer:PVC, Provide mechanical protection,and waterproof,protected against corrosion

Application	Residential floor warming Thick concrete heating for commercial
Rated Voltage	220 Vac
Linear Output	20 W/m
Min. Installation Temp.:	5 ℃
Min Bending Radius	38 mm

230V	Heating cable length		Output W	Current A	Resistance ohm
Catalog	ft.	m
SLLP/1 300	49	15	300	1.3	176.3
SLLP/1 400	66	20	400	1.7	132.3
SLLP/1 500	82	25	500	2.2	105.8
SLLP/1 600	98	30	600	2.6	88.2
SLLP/1 700	115	35	700	3.0	75.6
SLLP/1 840	138	42	840	3.7	63.0
SLLP/1 1000	164	50	1000	4.3	52.9
SLLP/1 1250	205	62.5	1250	5.4	42.3
SLLP/1 1500	246	75	1500	6.5	35.3
SLLP/1 1700	279	85	1700	7.4	31.1
SLLP/1 2100	344	105	2100	9.1	25.2
SLLP/1 2400	394	120	2400	10.4	22.0
SLLP/1 2600	427	130	2600	11.3	20.3
SLLP/1 2800	459	140	2800	12.2	18.9
SLLP/1 3300	541	165	3300	14.3	16.0

230V	Heating cable length		Output W	Current A	Resistance ohm
Catalog	ft.	m
SLLP/2R 300	49	15	300	1.3	176.3
SLLP/2R 400	66	20	400	1.7	132.3
SLLP/2R 500	82	25	500	2.2	105.8
SLLP/2R 600	98	30	600	2.6	88.2
SLLP/2R 700	115	35	700	3.0	75.6
SLLP/2R 840	138	42	840	3.7	63.0
SLLP/2R 1000	164	50	1000	4.3	52.9
SLLP/2R 1250	205	62.5	1250	5.4	42.3
SLLP/2R 1500	246	75	1500	6.5	35.3
SLLP/2R 1700	279	85	1700	7.4	31.1
SLLP/2R 2100	344	105	2100	9.1	25.2
SLLP/2R 2400	394	120	2400	10.4	22.0
SLLP/2R 2600	427	130	2600	11.3	20.3
SLLP/2R 2800	459	140	2800	12.2	18.9
SLLP/2R 3300	541	165	3300	14.3	16.0
