Commercial & Industrial Energy Storage System

Intelligent industrial and commercial energy storage systems,

energy-saving and cost-reducing, doubling profits.

· Highly reliable protection performance, wide operating

 temperature range, suitable for complex environments.

· Equipped with constant voltage, constant current, constant

 power modes, supporting grid-connected and off-grid operation.

· Equipped with reactive power compensation, harmonic

 compensation function, excellent load adaptability and grid

 adaptability.

· 100% three-phase unbalanced loading, supporting single-

 phase load connection, flexible load configuration.

· Safe and reliable, long-life lithium iron phosphate battery,

 >6000 cycles @ 25°C 0.5C DOD>80%

Model:ESS.I-100202

Rated Capacity:202kWh 0.5C@25°C

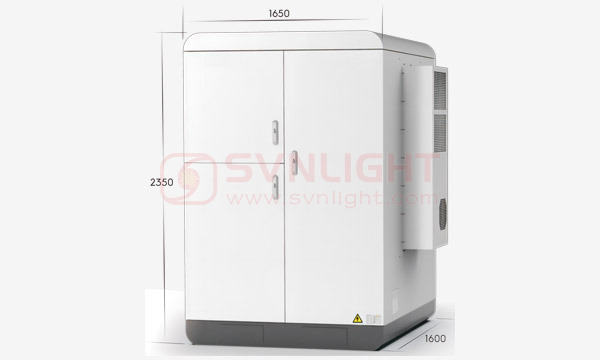

Products Size(W*D*H) :1650*1600*2350mm

Products Weight:3.1 T

Battery Voltage:844.8V

Battery Voltage Range:739.2V-937.2V

Max Dis/Charge Power:100kW

Operate Altitude:<2000M

Cooling System:Industrial Air Conditioning

ON-Grid/Off-Grid Mode:Manual/Automatic(Optional)

Grid Type:3P+N+PE

Fire Extinguishing System:Aerosols

IP Grade:IP54

Operate Temperature:-15°C~50°C(>45°C Quota reduction)

Communication Protocal: Modbus-TCP/Modubs-RTU

Unbalanced 3phase Load Capacity:100%

ON-Grid Parameters

Rated Voltage: 230Vac/400Vac

Voltage Range : -15%~10%

Rated Frequency:50HZ/60HZ

Max ON-Grid Power:100kW

Max Output Current:150A(150*380*1.732=100kw )

THDi:<3%(Rated Output Power)

OFF-Grid Parameters

(Automatic bypass requires configuring an STS)

Rated Voltage:230Vac/400Vac

Output Voltage Accurancy:1%

Max output Current:150A(150*380*1.732=100kw )

THDv:<1%(Linear load)

Rated Frequency:50HZ/60HZ

Over Load Capacity:110% 10min; 120% 1Min @35°C

Battery Pack

Battery Module:38.4V/120Ah(2P12S)

Standards:GB/T 36276, IEC62619, UN38.3
