Lithium Iron Phosphate(cobalt-free)-LiFePO4

· Selecting inverter communication protocol directly on the touch-screen

· Battery Cycle Life >6000 Times @ 25°C&0.5°C

· Max Parallel 16pcs to98.24kW

· Discharge/Charge 120Amp

· Support 6000W Inverter

· Support 27 Inverter Communication protocols

· Warranty: 5 Years/10 Years(Option)

Model:LFP.6144

Battery Cell:Lithium Iron Phosphate (cobalt-free)-LiFePO4

Energy Capacity:6.144kWh

Usable Capacity:5.83kWh

Nominal Voltage:51.2Vdc

Operate Voltage Range:44.8Vdc-57.6Vdc

Max Charge Current:120Amp

Max Discharge Current:120Amp

Max Parallel:16pcs to 98.24kWh

Cycle Life:≥6000times @ 0.5C & 25°C

Operate Temperature:

Battery discharge:

 -10°C to +50°C, Battery Charge: 0°C to +50°C

IP Grade:IP21

Installation:Wall-Mounted or Floor Installation

Communication Port:CAN/RS485

BMS Monitoring:SOC, System Voltage, I/O Current, Cell Voltage,

                           Cell Temp, Battery Status, Fault code

Support Inverter Brand:

    For CAN: Victron V1.0/SMA V2.0/ Studer V1.03/CNBOU V1.0/

    PYLON V1.3/Goodwe V1.5/SUNGROW V1.3/Solis V1.0/SOFAR

    V1.0/Growatt V1.05/Growatt V1.01/Luxpower V1.0/ Sol-Ark V1.2/

    TBB V1.02/Deye V1.0/LIVOLTEK V1.0/Sorotec V1.0/MEGAREVO

    V1.01/Afore V1.0/Sacolar V1.05

    For RS485:

    PYLON V3.5/DEYE V1.0/SRNE V1.3/Growatt V2.01/SMKSOLAR

    V2.01/EPEVER V1.4/Voltronic V1.0

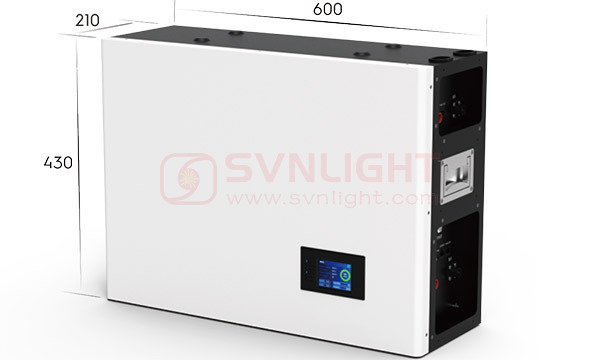

Products Size(W*D*H) :600*430*210 mm

Weight:65kg
