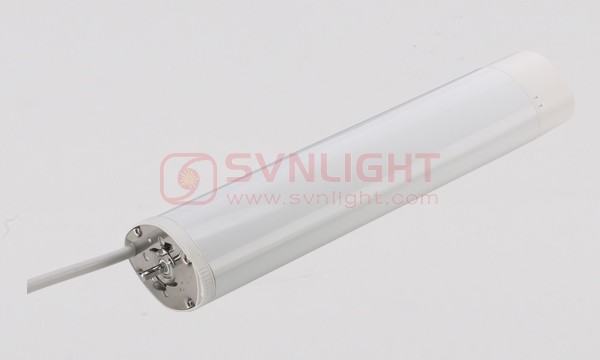

Curtain Motor

TZM03 curtain motor is designed in accordance with CCC & EN standard and manufactured
under the best quality control.
The motor is Z-wave wireless accessible and it can quickly, easily included and operated in any
Z-Wave network with other Z-Wave certified devices from any other manufacturers, and it can be
wireless control such as open/close window cover.
Meanwhile the curtain motor in the same network will act as repeaters regardless of the vendor in
order to increase reliability of the network.

Main parameters of motor

Manufacturer:DOOYA
Tor que (N.m):1.2
Rated Speed (cm/s):14cm/s
Rated Voltage(V):100-240V
Rated Frequency(Hz):50/60
Rated Power Input:13W
Rated Current(A):0.14A
Rated Speed(r/min):21 r/min)
Net Weight (kg):1.5kg
Degree of Protection:IP40
Rated 0.T.:S2:12min
Rail length:6M
Load weight:50Kg
Certified:CCC/CE/ROHS

Z-wave Technical Parameters

Operating voltage:DC 3-5V
Quiescent curren:≤4uA
Working current:25mA
0perating frequency:868.42 MHz - China/Europe

                                  908.42 MHz-United States
                                  921.42 MHz- Australia
                                  869.22 MHz-Russia
Distance:  30 meters indoor distance

                Outdoor straight: 40 meters
Working temperature:- 10℃～+50℃
Relative humidity:<95%RH
